Wizard, 39ft. Fin-Keel Ocean Cruiser

Similar Designs
  • Wizard, 39ft. Fin-Keel Ocean Cruiser

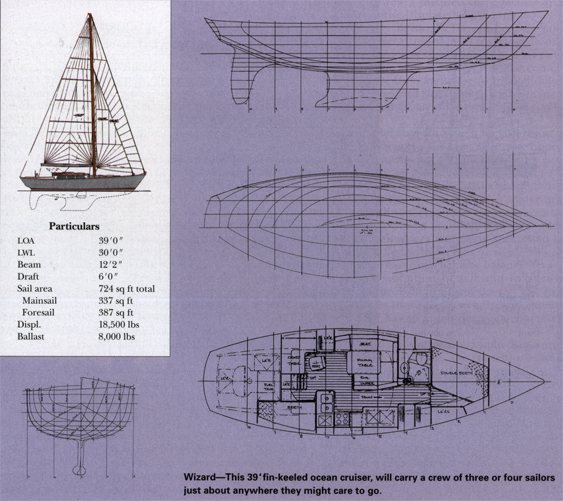

Click on the image for full-size version and slideshow


  • Vessel Specifications and Comments

    • LOA: 39' 0"
    • Beam: 12'2"
    • Draft: 6'0"
    • Displacement: 18,500 lbs
    • Ballast: 8,000 lbs
    • Sail Area: 724 sq.ft.
    • Construction: Construction: cedar-strip core sheathed in fiberglass
    • General Comments: In hull form Wizard is what I call a modern classic. Her overhangs are not as long as boats featured 40 years ago but they are still long enough to draw out the lines gracefully. Her sections are well rounded in the topsides and become veed in her bottom. As a modern design, her freeboard is much higher than older designs, so the rounded sections are important amidships, where straighter sections make hulls look slab-sided. This roundness is also important aft; again, this is a modern design so her quarters are fuller (beamier) than earlier designs.

  • About the Plans

    • Construction Method and Materials:

      Sheathed-strip planking over plywood bulkheads, full size plots for bulkheads, transom, and stem provided.

    • Number and Type of Drawings:

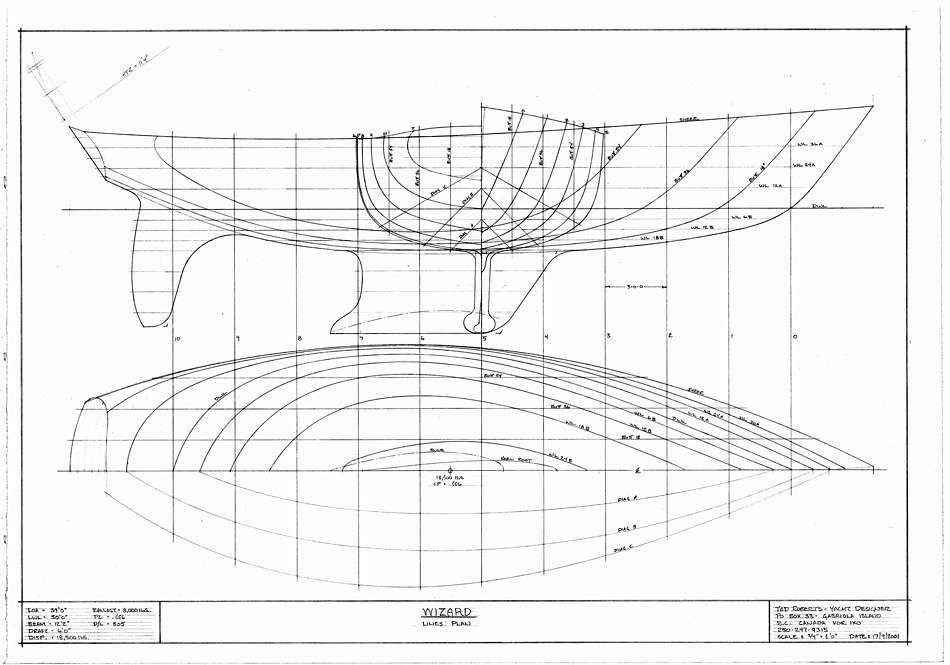

      • Lines and Offsets
      • General Construction
      • Full Size Construction Details

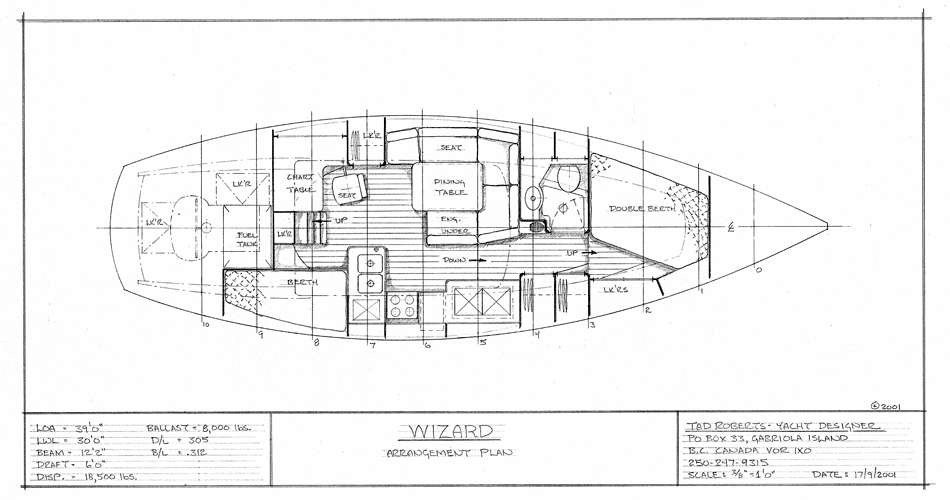

      • General Arrangement
      • Sail Plan
      • Spar and Rigging Plan.
      • Full size plots for bulkheads, transom, and stem provided


    • Study Plan:

      PDF

    • Base Price:

      $550 CAD
    Order the Plans -->

Extended Comments

Wizard is large enough for three or four people to live aboard for long people to live aboard for long periods, she has the hull volume to carry the stores necessary for a long voyage. Her weight will increase substantially at the start of such a voyage. Each person aboard means another 1,000 pounds minimum. With three people aboard and prepared to set off on a long cruise at a weight of 21,500 pounds, the longer waterline will give her a D/L of 304. Certainly we need a pretty good idea of the load condition before making assumptions about a vessel from her D/L ratio. The extra 3,000 lbs will put her down 2.3 inches, a small amount in the overall scheme of things; she could handle twice that.

The deckhouse is inspired by a couple of pictures of John Alden's Challenger design, from Arthur Beiser's book The Proper Yacht [Macmillan, 1966 ]. Big, fixed windows can transform the main cabin of a sailing yacht into an airy, light-filled space. (For structural integrity, this glass area is divided into three smaller sections.) Part of my definition of modern classic is doing away with dark, cramped accommodations.

PDF   Tad's article “Sailing Cruiser Design -Part 1” published in Wooden Boat #175

PDF   Tad's article “Sailing Cruiser Design -Part 2” published in Wooden Boat #176

Tad Roberts
