Nomad 16 Lapstrake Runabout

Similar Designs

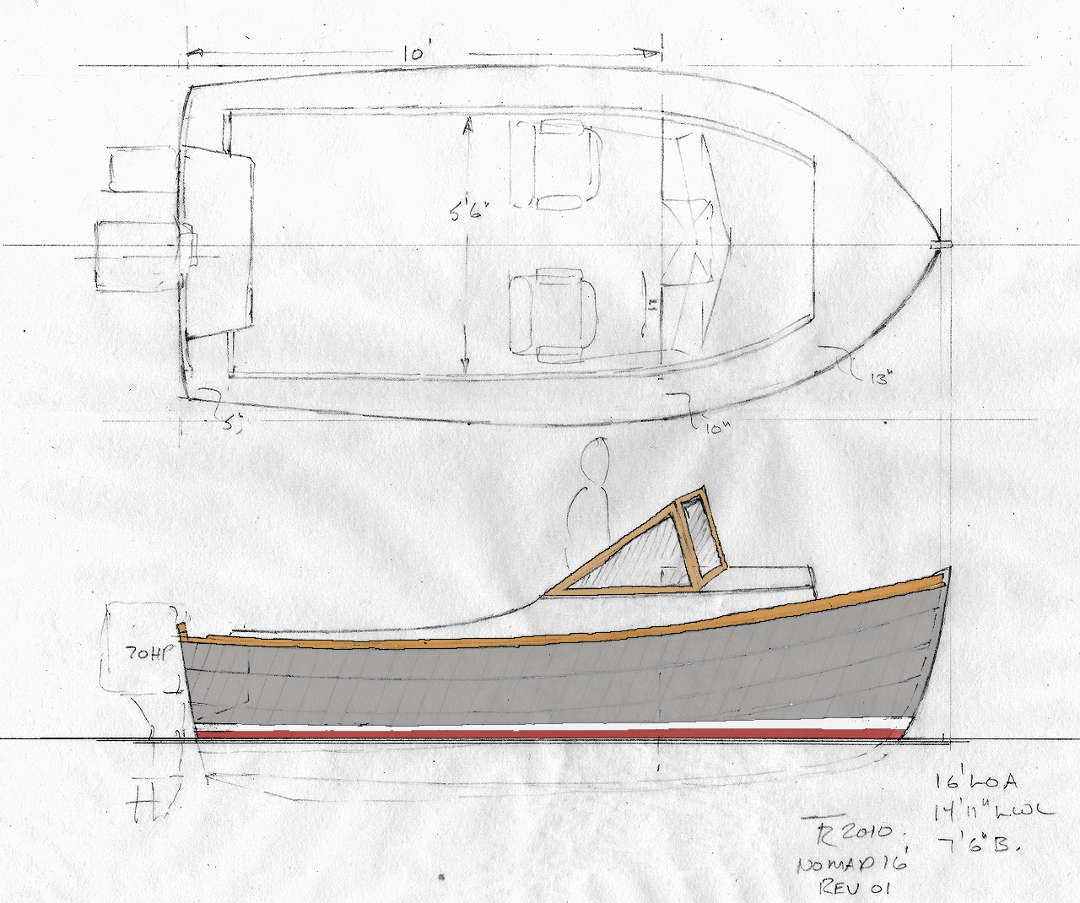

  • Nomad 16' Runabout

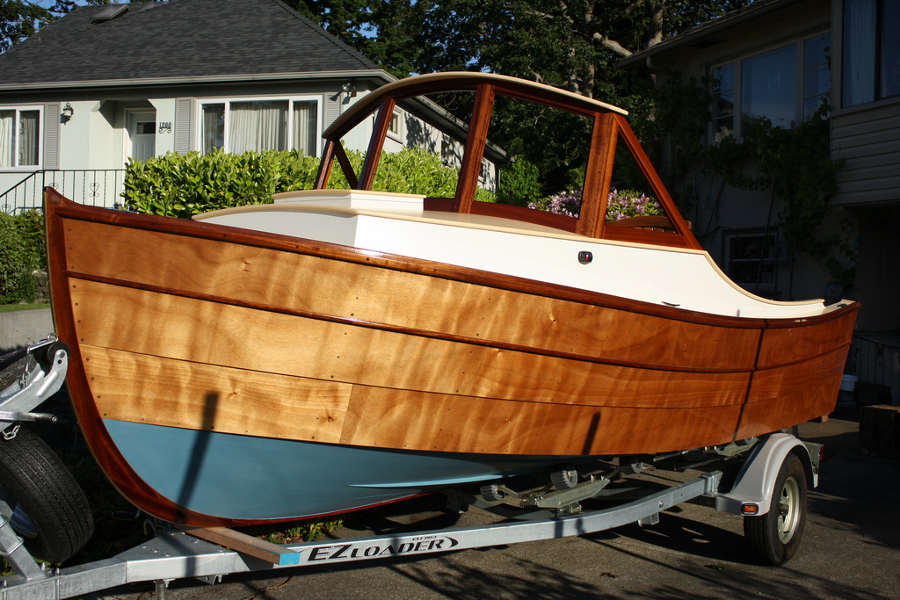

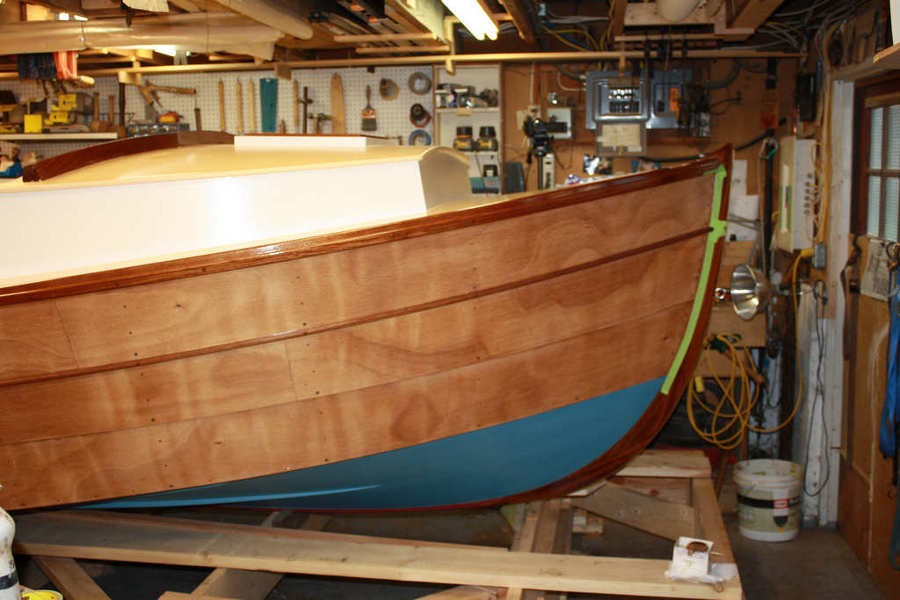

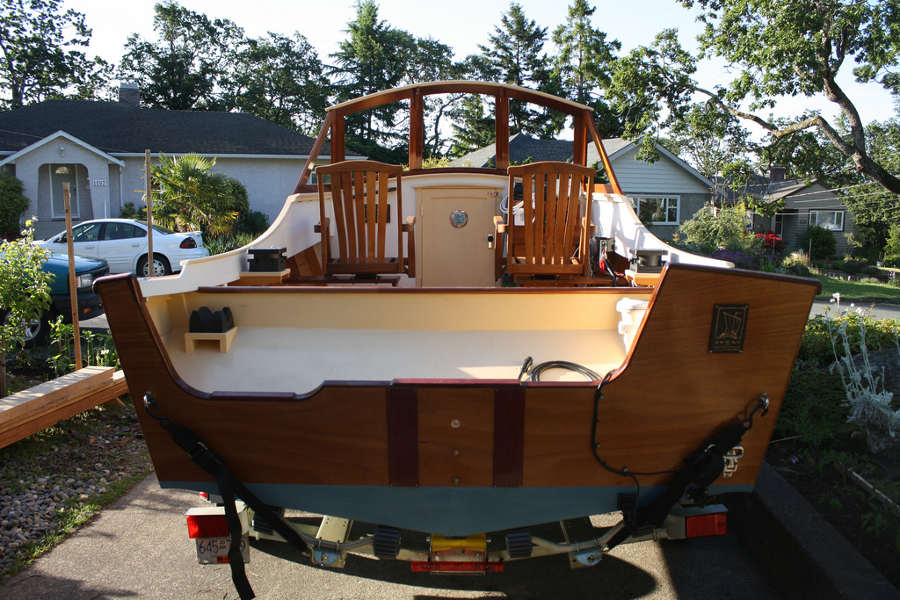

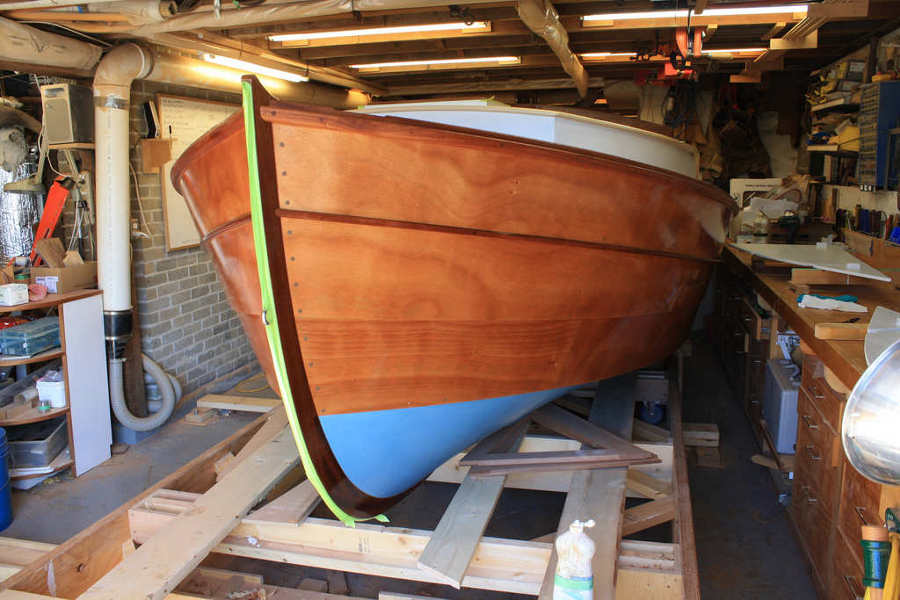

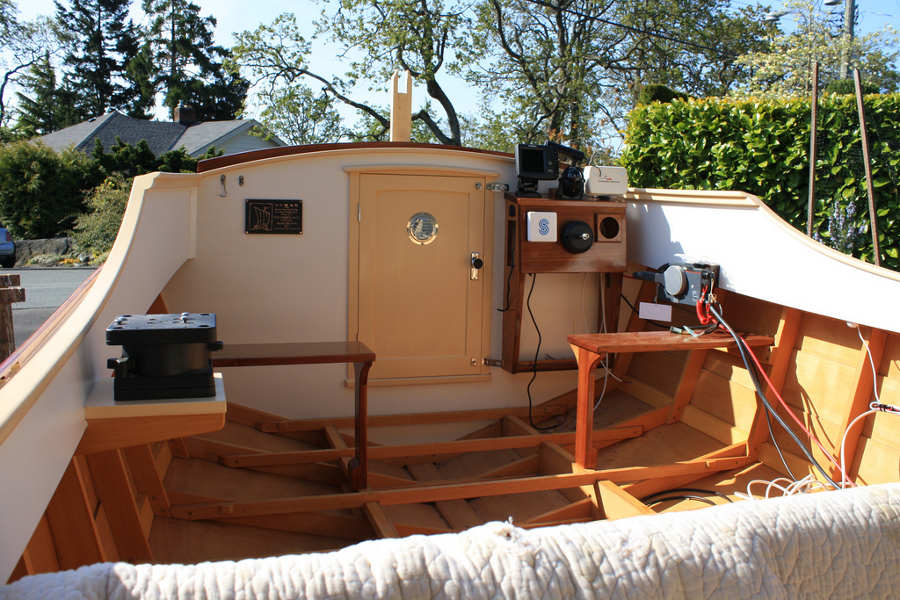

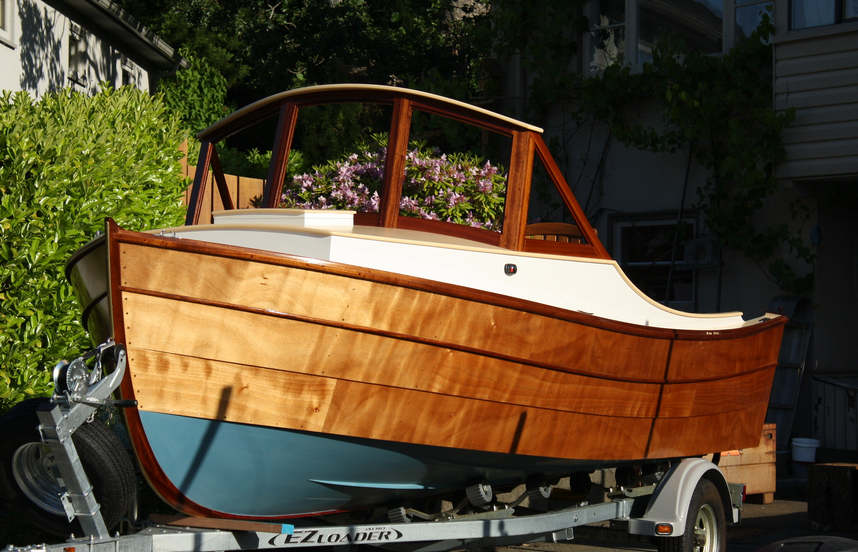

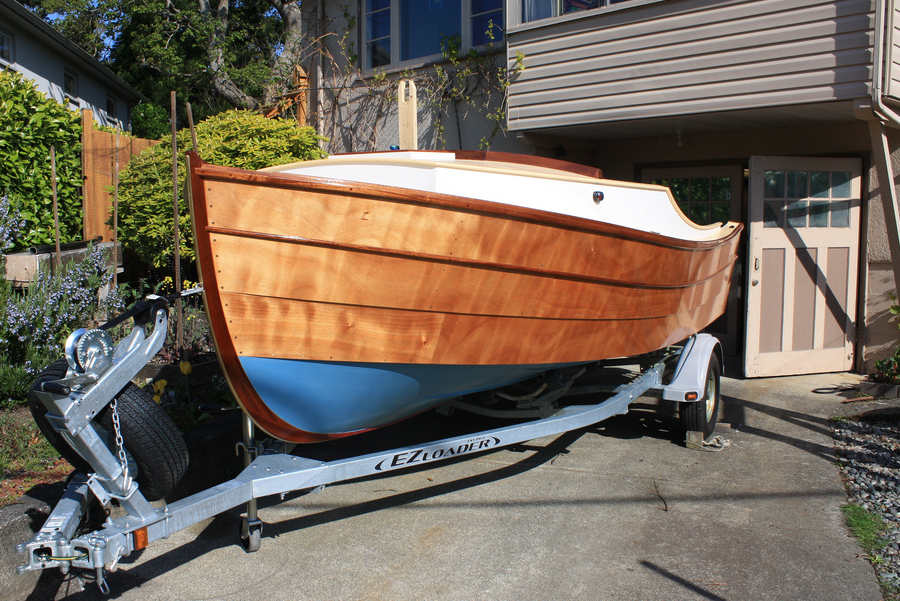

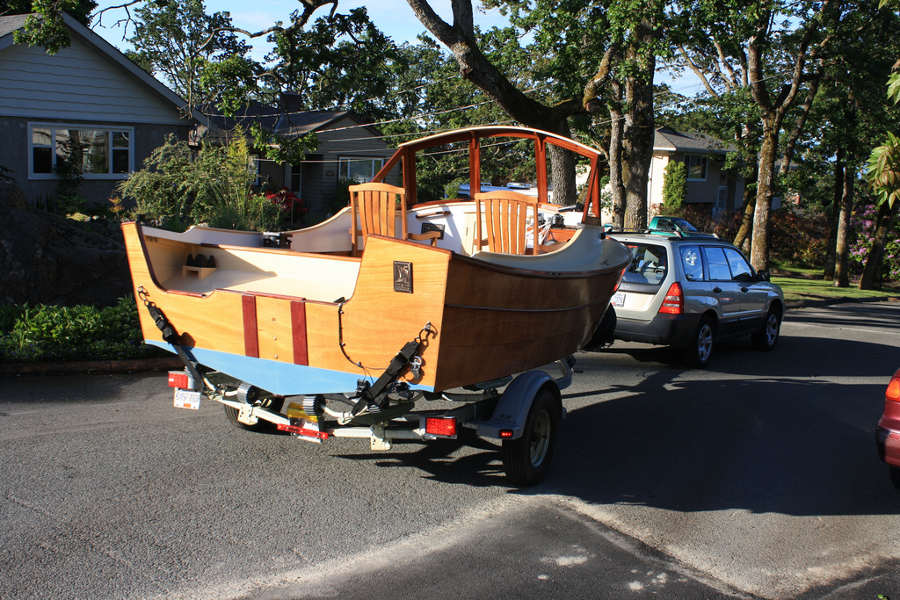

  • Nomad 16' Runabout under construction by Nomad Boatbuilding
Click on the image for full-size version and slideshow


  • Vessel Specifications and Comments

    • Construction: 3/8” plywood sheathing over sawn frames and stringers.  Lofting required.
    • LOA: 16' 0"
    • LWL: 14’11”
    • Beam: 7’6” max. Beam WL = 6’8”
    • Draft: (hull) 8”
    • Displacement to DWL: 1300 lbs
    • Deadrise at transom:
    • Power: 50-70 HP four-stroke outboard

  • About the Plans

    • Designed for wooden construction: 3/8” plywood sheathing over sawn frames and stringers.  Lofting required.
    • Three sheets of drawings; 3 sheets, hull lines, general construction, construction details.
    • Base Price: $400.00 CAD
    Order the Plans -->

About the Builders - Nomad Boatbuilding

At Nomad Boatbuilding, we construct and restore wooden boats up to 20' in length and repair wooden boats up to 50' in length. The construction of traditional skin-on-frame kayaks, clinker skiffs and lapstrake double paddle canoes. We can build in all manner of traditional construction techniques and are open to most modern alternatives. For more information, contact:

Mark Reuten
tel: (250) 884-1577
web site:
www.nomadboatbuilding.com
address:
1204 Clovelly Terrace
Victoria BC
V8P 1V6 Canada

Designer's Comments

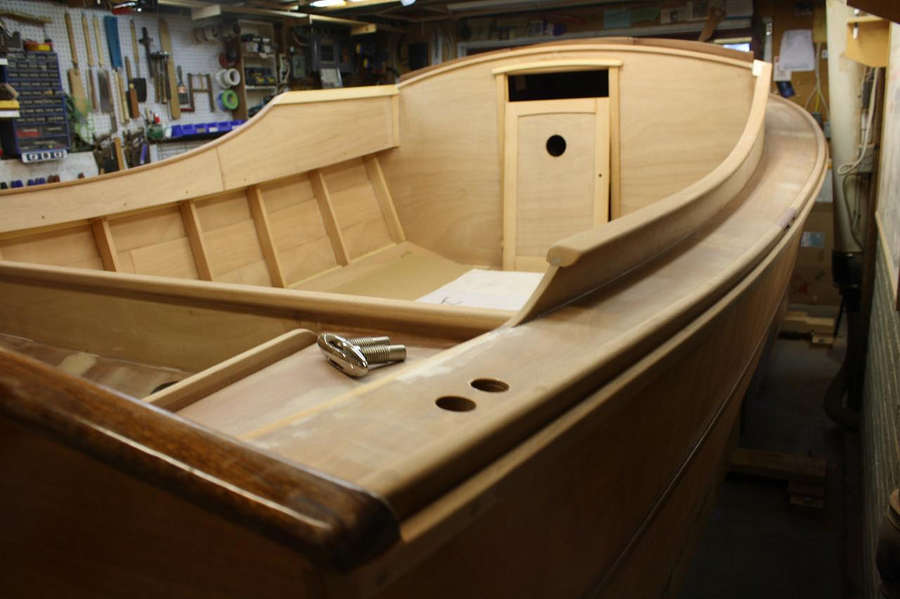

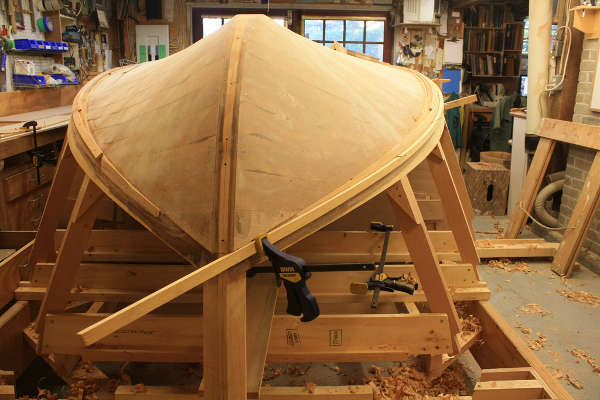

Nomad 16 under construction, builder, Mark Reuten. Photo credit, Mark Reuten

Designed with maximum cockpit size, both in length and width, and intended for day fishing trips in coastal BC. The tiny cuddy cabin forward is only used for dry storage. A modern boat of traditional appearance with her lapstrake plywood topsides and wooden windshield frame. Commissioned by a Victoria BC client to be built by Nomad Boatbuilding, Victoria, BC. Photo gallery at http://www.flickr.com/photos/tags/tadrobertsdesign/ or http://www.flickr.com/photos/nomadboatbuilding.

Tad Roberts
