Johnson 30 Ring Netter

Similar Designs

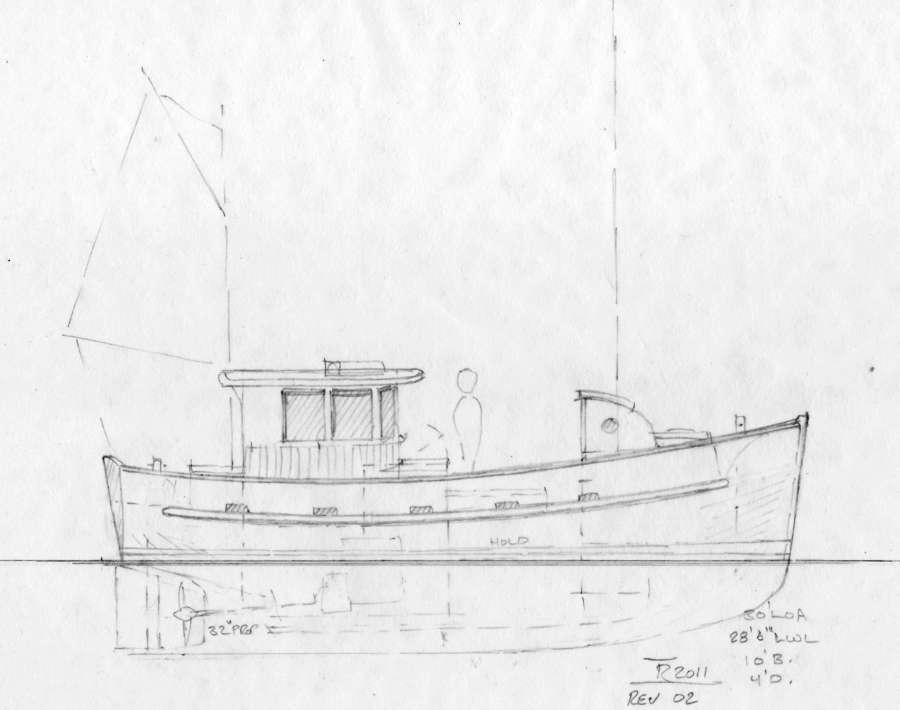

  • Johnson 30, Scottish Ringnetter, Traditional Heavy Displacement Wooden Power Boat, Double-ended Version
  • Johnson 30, Scottish Ringnetter, Traditional Heavy Displacement Wooden Power Boat, Transome stern Version

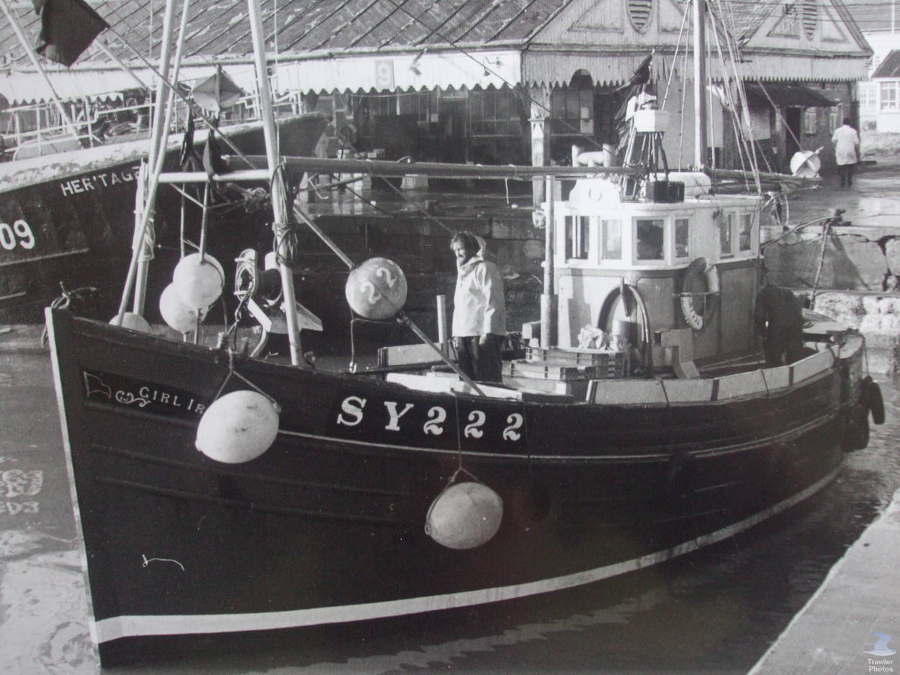

  • SY222-Working Scottish Ringnetter-photo

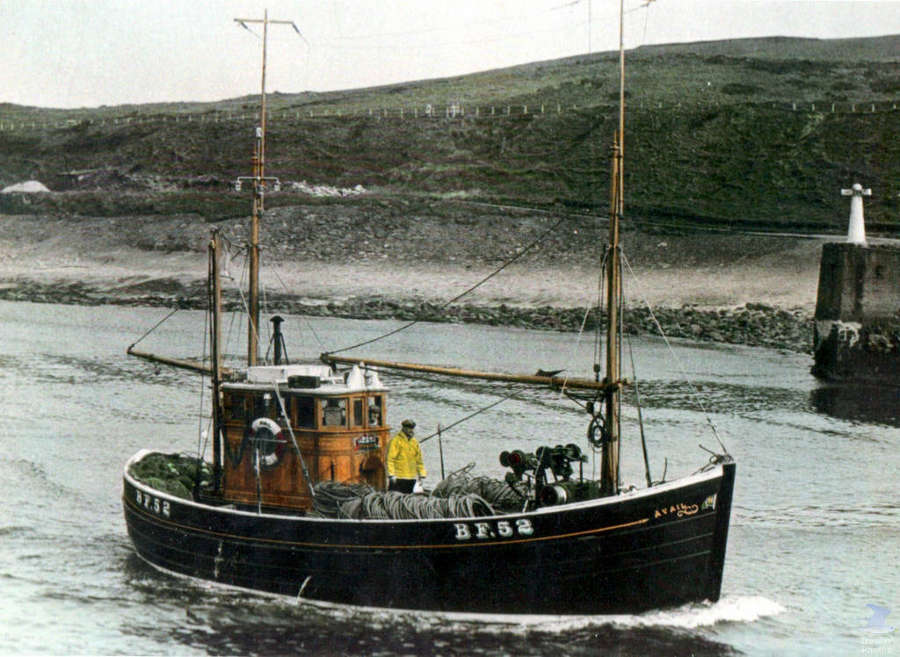

  • BF.52-Working Scottish Ringnetter-photo
  • SY222-Working Scottish Ringnetter-photo
Click on the image for full-size version and slideshow

  • Vessel Specifications and Comments

    • LOA: 30’0”
    • LWL: 28’8”
    • Beam: 10’0”
    • Draft: 4’0”
    • Displacement: (full load) lbs
    • Fuel:
    • Water:
    • Power: approx 60HP Diesel, 3.5:1 reduction
    • Cruising speed:
    • Construction: Sheathed strip construction
    • General Comments: A traditional Scottish Ring Netter type, commissioned in 2011. She is a big hull with very small accommodation; actually the owner will use her as a day boat though there's just enough space in the foc'sl for a vee berth with toilet under. The pilot house will have one seat and the smallest woodstove available. She'll also have a dry stack exhaust and keel cooling for simplicity and reliability.

About the Plans

    • Construction Method and Materials:

      Sheathed strip planking (with or without diagonal veneer layers) on laminated frames with heavy laminated backbone

    • Number and Type of Drawings:

    • Study Plan:

      General Arrangement PDF

    • Design Comments:

      Design Comments

    • Base Price:

      CAD
    Order the Plans -->

Similar Designs

Designer's Comments

The Ring Netter is a commission that is in very early stages of development right now. The owner/builder is planning strip plank construction over temporary molds with fairly heavy glass sheathing outside. Decks will be plywood over laminated beams and the inside of the bulwark and deck will all be glass sheathed for toughness. She is a big hull with very small accommodation; actually the owner will use her as a day boat though there's just enough space in the foc'sl for a vee berth with toilet under. The pilot house will have one seat and the smallest woodstove available. She'll also have a dry stack exhaust and keel cooling for simplicity and reliability.

Tad Roberts
