48' Steel Sailing House Barge

Similar Designs

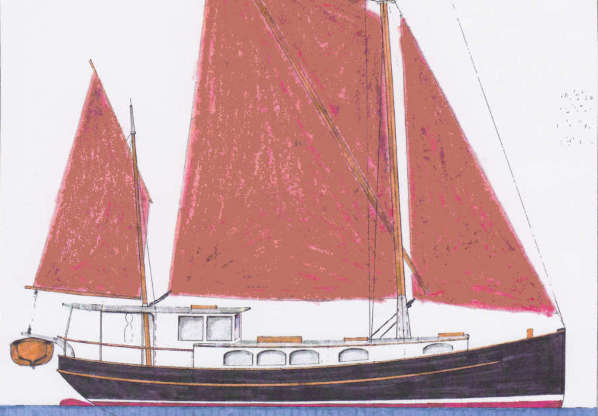

  • 48' Steel Sailing House Barge. Traditional spritty sail plan.

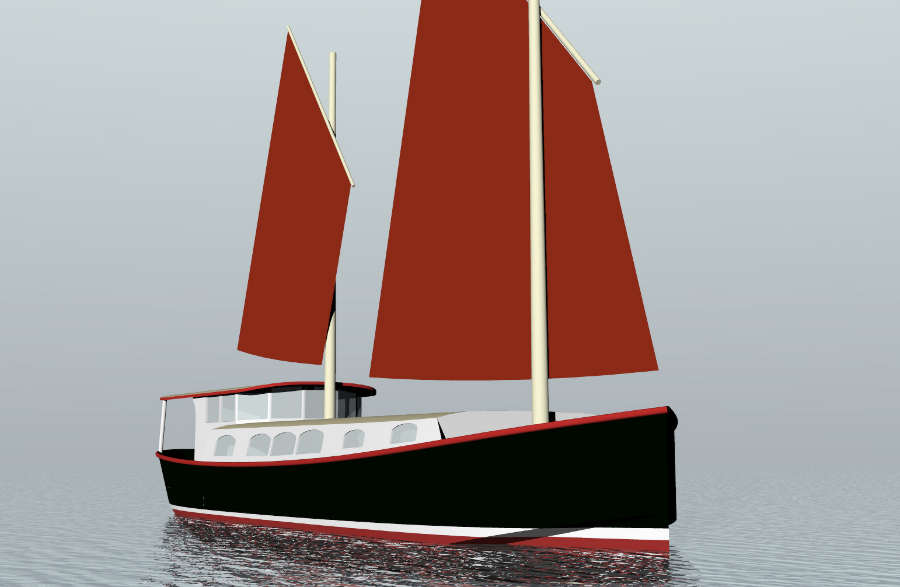

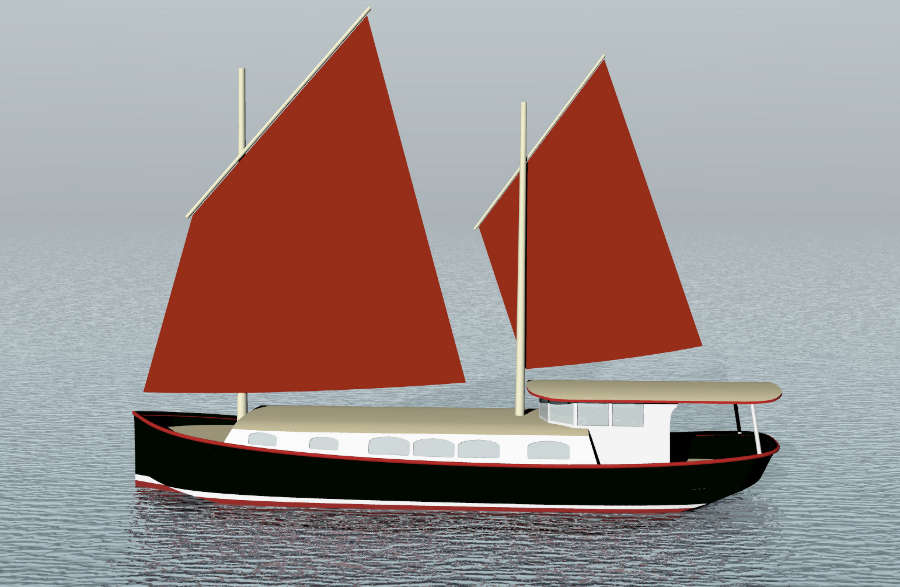

  • 48' Steel Sailing House Barge. Lug sail plan option.
  • 48' Steel Sailing House Barge
  • 48' Steel Sailing House Barge
  • 48' Steel Sailing House Barge
  • 48' Steel Sailing House Barge
Click on the image for full-size version and slideshow


  • Vessel Specifications and Comments

    • LOA:48’0”
    • LOW:43’0”
    • Beam: 12’0”
    • Draft: 20”
    • Displacement: 45,000 lbs
    • Ballast: lbs
    • Sail Area: 650 sq.ft.
    • Power: Twin Yamaha four-stroke high-thrust outboards
    • Construction: All steel hull, deck, and house. Folding wooden spars.
  • General Comments: Designed for full time living aboard by a small family, with good heat, insulation, double paned windows, solar panels and windmill. Freshwater collection system, and composting toilet minimize reliance on shore systems. Numerous interior arrangements available.

About the Plans

    • Construction Method and Materials:

      Steel. Transverse web frame (angles) and flat bar stringers, deep plate floors with integral tanks.

    • Number and Type of Drawings:

      Drawings are CAD, Lines, general construction, sail and rigging plan, general arrangement. Full size part plots available at extra cost.

    • Study Plan:

      General Arrangement PDF

    • Study Plan:

      Sail Plan PDF

    • Design Comments:

      Design Comments

    • Base Price:

      $2500 CAD
    Order the Plans -->

Extended Comments

Tad Roberts
